1. Projul to QuickBooks Desktop Integration

(Return to table of contents)

Step-by-step user instructions to connect a Projul account with QuickBooks Desktop.

• Note: QuickBooks Desktop 2020 or above is required for this integration. To download the latest version from the official Intuit (QuickBooks) website, click here.
• For the QuickBooks Online integration document, click here.

1.1 Log in to Projul

(Return to table of contents)

• Log in to Projul using the following link (app.projul.com). After successful login, you will be redirected to the Projul dashboard.
• If you don’t have a registered account on Projul, you can sign up here.

1.2 Go to the Integrations Page

(Return to table of contents)

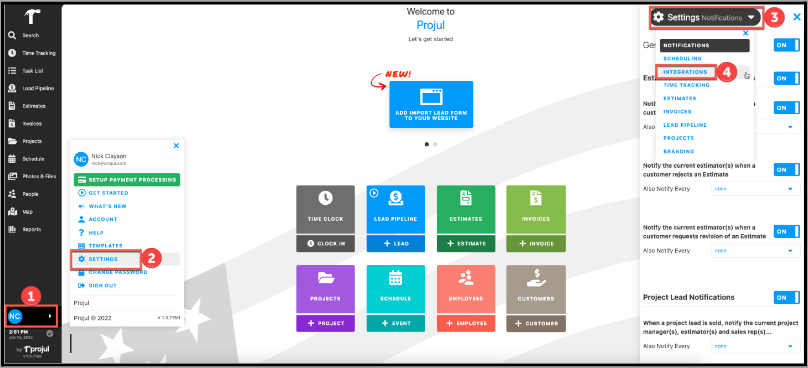

To get to the Integrations page:

1. Click on account / initials in the bottom left corner of your Projul navigation bar.
2. Click on settings.
3. Click the settings dropdown menu on the sidebar.
4. Select integrations.

1.3 Install Projul Sync Manager Application

(Return to table of contents)

There are two integration options: QuickBooks Online and QuickBooks Desktop.

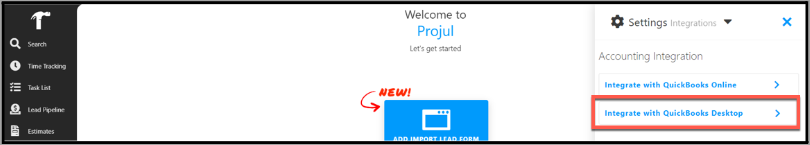

• Click on QuickBooks Desktop.

• Download the Projul Sync Manager Application on the same computer as QuickBooks Desktop. You can download the Projul Sync Manager from Projul (screenshot below) or by clicking here.

• Note: The Projul Sync Manager Application must be installed on the same computer as QuickBooks Desktop is installed.

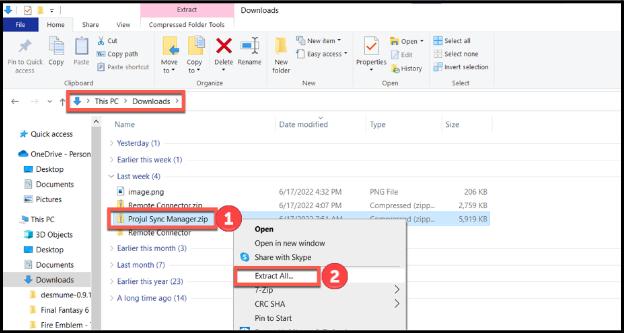

• Find the downloaded Projul Sync Manager Application file (it will be in the downloads folder unless another folder was selected for the download), then:

1. Right click on the file.
2. Click Extract All.

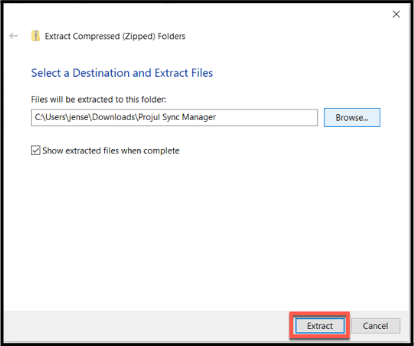

• Click the extract button.

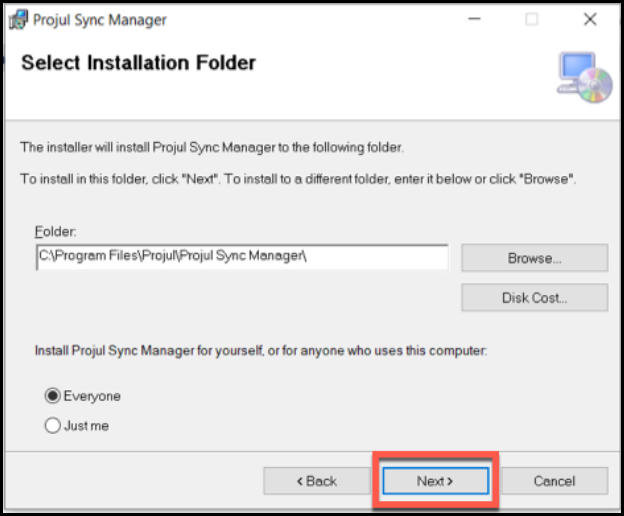

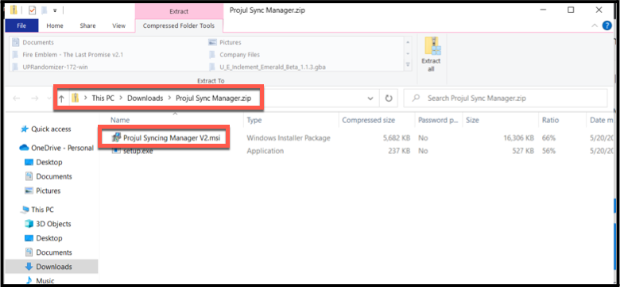

• Find and double click the extracted Projul Sync Manager V2 file (it will be in the downloads folder unless another folder was selected for the download).

Follow the installation prompts.

• Note: During the installation you may be asked if you want to install C++ on the computer. Click yes if that occurs.

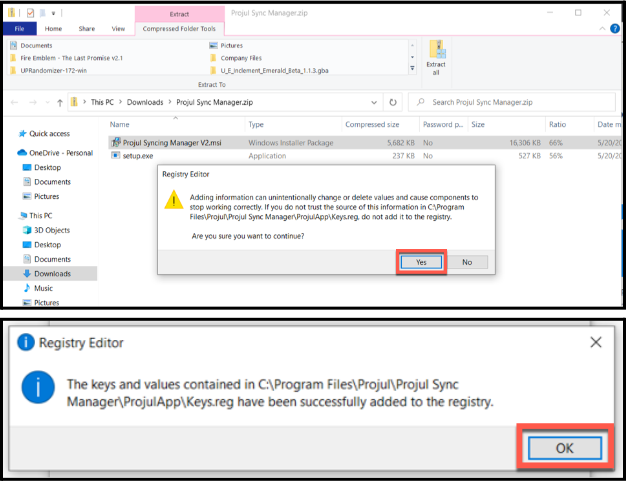

• Allow the Projul Sync Manager to update the registry.

1.4 Install Remote Connector for QuickBooks

(Return to table of contents)

The Intuit Remote Connector for QuickBooks must also be installed in order to integrate Projul with QuickBooks Desktop.

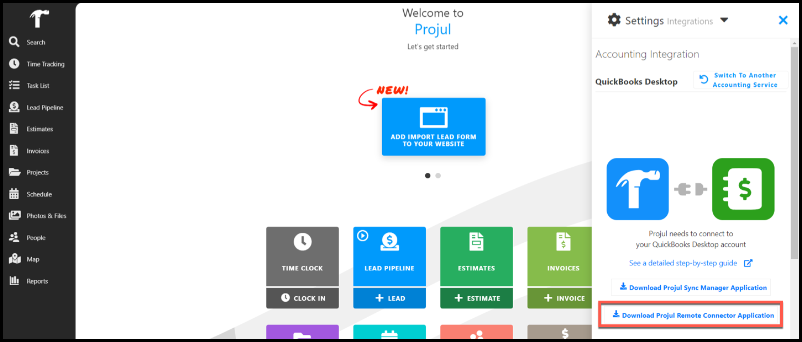

• Navigate back to the Projul Integrations page and download Projul Remote Connector Application link. You can download the Remote Connector from Projul (screenshot below) or by clicking here.
• Note: Remote Connector must be installed on the same computer as QuickBooks Desktop is installed.

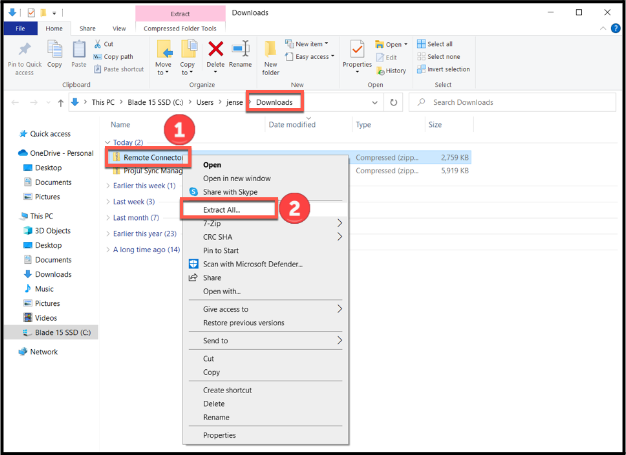

• Find the downloaded Remote Connector file (it will be in the downloads folder unless another folder was selected for the download), then:

1. Right click on the file.
2. Click Extract All.

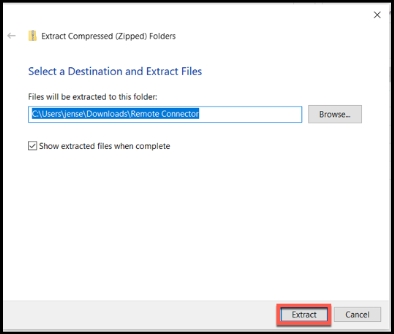

• Click the extract button.

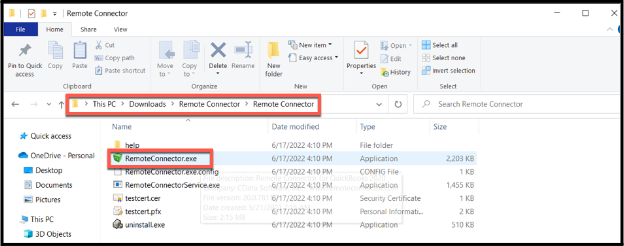

• Find and double click the extracted Remote Connector file to install and open the program (the file will be in the downloads folder unless another folder was selected for the download).



1.5 Set Up Remote Connector for QuickBooks

(Return to table of contents)

Now that it is installed, the Intuit Remote Connecter for QuickBooks must also be set up.

• Open Remote Connector for QuickBooks

• Note: QuickBooks Desktop MUST also be open for this setup process.

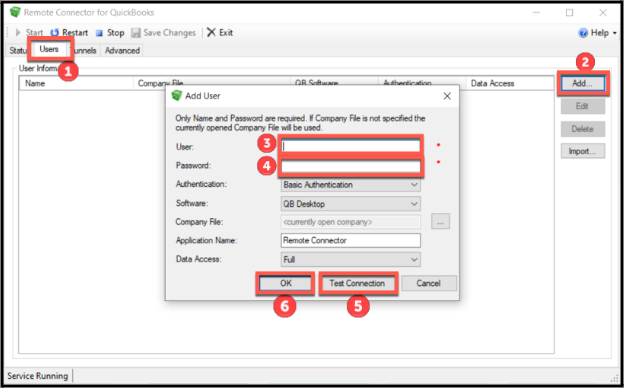

• Open the add new user screen:

1. Click on the Users tab.
2. Click the Add button.
3. Enter an administrator in QuickBook's Username.
4. Enter that user's Password.
5. Click the Test Connection button.
6. Click the OK button to finish creating the new user.

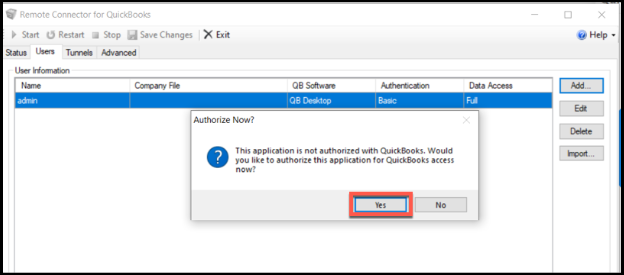

• Click Yes on the popup to authorize Remote Connector to access QuickBooks.

• After the user accepts authorization, the QuickBooks authorization certificate will display automatically. Use the following steps to complete the integration authorization in QuickBooks.

1. Click the radio button, “Yes, always; allow access even if QuickBooks is not running.” A popup will appear asking for verification. Click Yes on the popup.
2. Check the checkbox to Allow this application to access personal data….
3. Click Continue.

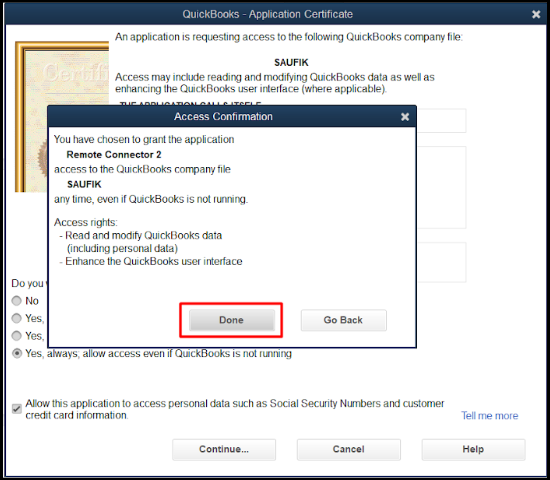

• Click Done on the Access Confirmation popup.

• Navigate back to the Remote Connector screen.

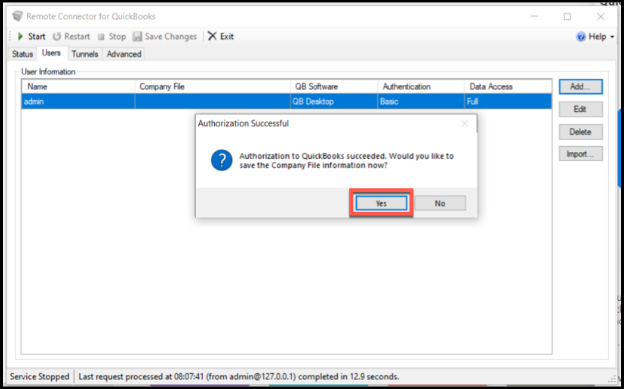

• Click Yes on the Authorization Successful popup, which will complete the process of adding a new user with the appropriate permissions.

• After adding a new user:

1. Go to advanced settings
2. Find the port number. The port number will be needed to connect Projul to QuickBooks Desktop.
3. Make sure Enable TLS is not checked.

1.6 Connect the Projul Sync Manager

(Return to table of contents)

With the port number from the prior step, the Projul Sync Manager can now be connected. Return to the Projul Integrations page.

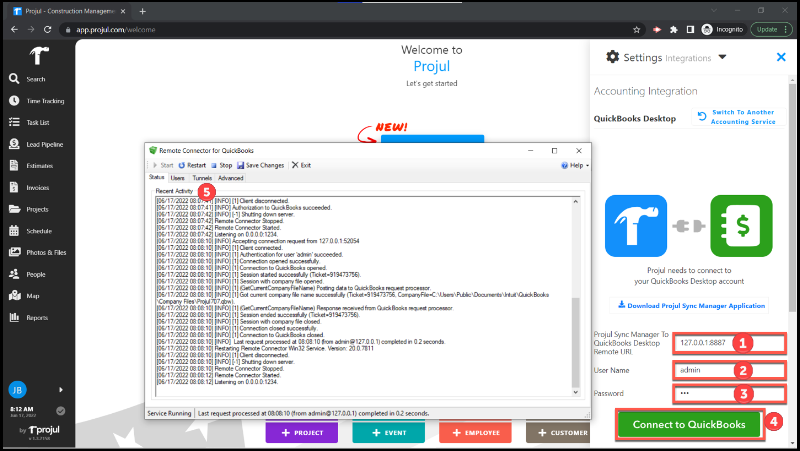

• Enter the following information:

1. Remote URL: URL: 127.0.0.1:8887. The last part of the number (8887) is the port number. The port number was provided in the previous step (Remote Connector→Advanced→Connection Settings→Port).
2. User Name: Enter the username used for the remote connector.
3. Password: Enter the password used for the remote connector.
4. Click the Connect to QuickBooks button.
5. Connection activity will display in the Remote Connector screen confirming the connection.

• Note: Both the Projul Sync Manager and Remote Connector can run in the background and do not need to have the popup open for the sync to run.

The QuickBooks Desktop company account has now been connected to Projul!



1.7 Disconnection

(Return to table of contents)

To disconnect Projul from QuickBooks, click the disconnect button in the Projul Integrations page.

2. Data Type Sync Selections

(Return to table of contents)

For QuickBooks Desktop, data syncing is one-way (from Projul to QuickBooks Desktop). The following data types may be synced to QuickBooks Desktop.

1. Categories
2. Costs
3. Customers
4. Employees
5. Estimates
6. Invoices
7. Payments
8. Projects
9. Taxes
10. Time Logs

Only data types selected/checked in the Integrations page of Projul will be synced.

2.1 Types of Syncing (Manual vs Automatic)

(Return to table of contents)

There are two types of syncing: manual and automatic.

2.1.1 Manual Syncing

(Return to table of contents)

To sync data manually, click the "Sync to QuickBooks Desktop" button found at the top of that data’s editor.

2.1.2 Automatic Syncing (Currently Disabled - Coming Soon)

(Return to table of contents)

When data is entered or edited, Projul will automatically sync that data to QuickBooks. The sync is initiated when the editor containing that data is closed.

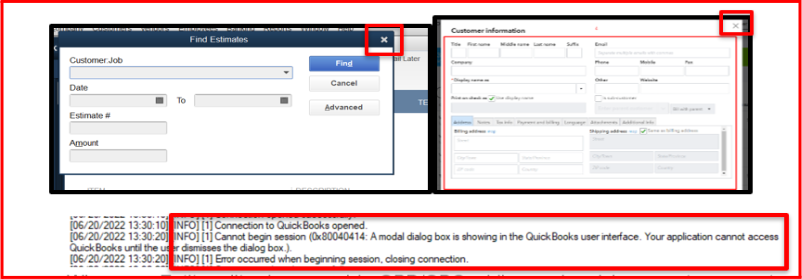

• Note: Data entry screens in QuickBooks must be closed while syncing, or the sync may fail and an error will display in the Remote Connector for QuickBooks.

2.2 Sync Icons

(Return to table of contents)

Projul has four sync statuses represented by the following icons.

	Pending Data Sync
	Data Not Synced (Sync Error Occurred)
	Some Data Types Synced
	Data Synced

Data items selected to be synced on the Integration page, as noted in the previous section, will display one of these icons by the data as illustrated in the examples below.

• Note: Once the system finishes syncing, the webpage may need to be refreshed to see the changes.

Examples:

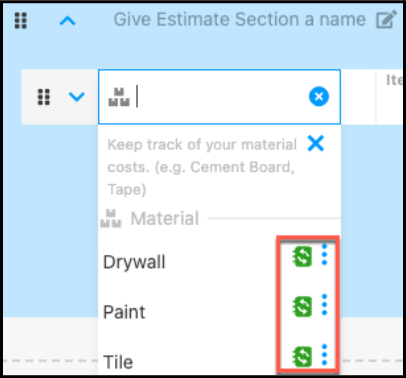

Screenshot example of the sync icon (pending sync) for the cost line item data.

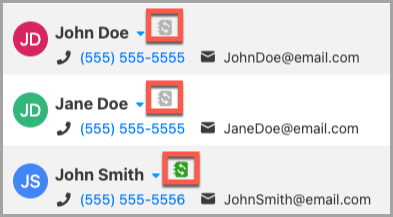

Screenshot example of the sync icon (data synced) for the customer data.

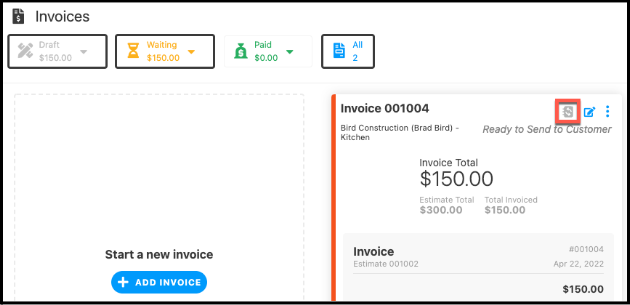

Screenshot example of the sync icon (pending sync) for the invoice data.

3. Sync Details by Data Type

(Return to table of contents)

The rest of this document will provide sync details for each of the data types in the list below. As stated previously, data syncing is one-way for QuickBooks Desktop (from Projul to QuickBooks Desktop). The chart below shows the data types that may be synced.

3.1 People

(Return to table of contents)

Projul offers three types of people roles that correspond to the QuickBooks customer. Two of the three may be synced between Projul and QuickBooks Desktop.

1. Customers
2. Employees
3. Contractors (not synced)

Customers are generally added while creating a new project OR separately in the People menu.

3.2 Customers

Projul customer data syncs to QuickBooks Desktop fields as follows.

Sr. No.	Projul Field	QuickBooks Desktop Field
1.	First name	First name
2.	Last name	Last name
3.	Phone	Main Phone
4.	Company Name	Company Name
5.	Display Name	Customer Name
6.	Email	Main Email
7.	Primary Address	Invoice/Bill to
8.	Notes	--



3.3 Employees

Projul employee data syncs to QuickBooks Desktop fields as follows.

Sr. No.	Projul Field	QuickBooks Desktop Field
1.	First Name	First Name
2.	Last Name	Last Name
3.	Phone	Main Phone
4.	Email	Main Email
5.	Cost rate	---
6.	Notes	Description
7.	Hire Date	Hire Date
8.	Birthday	Date of Birth
9.	Home address	Address
10.	Labor name/Type	Item Name
11.	Pay rate	Hourly Rate

Example:

The following link details how to add a new employee.

https://help.projul.com/hc/en-us/articles/4406762933783-How-do-I-add-an-Employee-User-in-Projul

3.4 Projects

(Return to table of contents)

While Projul is designed to be project-centric, every project requires a customer. As such, project sync is dependent on the customer data syncing. If the customer data is not synced, project syncing will not work.

Projul project data syncs to QuickBooks Desktop fields as follows.

Sr. No.	Projul Field	QuickBooks Desktop Field
1.	Project Name	Full Name
2.	Customer Name	Job Name
3.	Project Notes	Job Description
4.	Project Type	Job Type
5.	Start Date	Start Date
6.	Completion Date	Projected End Date
7.	Customer Contact Number	Main Phone
8.	Additional Project Phone	Main Email
9.	Project Address	Address Detail

Example:

The following link details how to create a new project.

https://help.projul.com/hc/en-us/articles/4406762897943-How-do-I-create-a-new-project-lead-

3.5 Time Logs

(Return to table of contents)

Time log sync is dependent on the employee data syncing. If the employee data is not synced, time log syncing will not work.

• Note: If user syncing is on auto-sync, then syncing will start when the user approves the time log.
• Note: Pay rate syncing works for new pay rates only.

For time log data, Projul fields sync to QuickBooks Desktop fields as follows.

Sr. No.	Projul Field	QuickBooks Desktop Field
1.	Project	Project
2.	Pay Rate	Payroll
3.	Duration	Duration
4.	Notes	Notes
5.	Employee Name	Employee Name

Example:

The following links detail how to enter time, approve a time log and manage pay rates.

Time Logs

https://help.projul.com/hc/en-us/articles/4406762883351-How-do-I-edit-or-add-a-time-log-as-an-admin-

Pay Rates

https://help.projul.com/hc/en-us/articles/4422586052503-How-do-I-use-pay-rates-

3.6 Categories

(Return to table of contents)

There are three types of categories in Projul, and all will sync from Projul to QuickBooks Desktop.

1. Labor
2. Materials
3. Other Costs

Example:

The following link details how to create an estimate with costs at the category level.

https://help.projul.com/hc/en-us/articles/4496859070231-How-do-I-add-edit-or-remove-saved-Cost-Item-Templates-

3.7 Costs

(Return to table of contents)

In Projul, the three categories above may be broken out into various cost line items. For example, materials could include drywall, paint, or steel.

The different cost categories have varying mandatory fields that must be completed in order for syncing to occur.

3.7.1 Labor Costs

Projul labor costs sync to QuickBooks Desktop fields as follows.

Sr. No.	Projul Field	QuickBooks Desktop Field
1.	Labor Name	Item Name/Number
2.	Product Image	----
3.	Labor Category	Sub-Product/Service
4.	Default Cost per FT	Cost
5.	Default Markup per FT	Sale Rate
6.	Taxable	Tax Code
7.	Description	Description

3.7.2 Material Costs

Projul material costs sync to QuickBooks Desktop fields as follows.

Sr. No.	Projul Field	QuickBooks Desktop Field
1.	Material Name	Item Name / Number
2.	Product Image	----
3.	Vender	Preferred Vender
4.	SKU	Manufacturer’s Part Number
5.	Material Category	Sub-item of
6.	Default Cost per Unit	Cost
7.	Default Markup per Unit	Sale Rate
8.	Taxable	Sale Tax
9.	Default Description	Description

3.7.3 Other Costs

Projul other costs sync to QuickBooks Desktop fields as follows.

Sr. No.	Projul Field	QuickBooks Desktop Field
1.	Cost Name	Item Name/Number
2.	Product Image	---
3.	Default Cost per Unit	Cost
4.	Default Markup per Unit	Sale Rate
5.	Taxable	Tax
6.	Default Description	Description

Example:

The following link details how to create an estimate with costs at the cost line item level, as well as how to Remember Labor / Material / Other Cost as Template which is required for cost line item syncing.

https://help.projul.com/hc/en-us/articles/4496859070231-How-do-I-add-edit-or-remove-saved-Cost-Item-Templates-

3.8 Taxes

(Return to table of contents)

Projul tax data syncs to QuickBooks Desktop fields as follows.

Sr. No.	Projul Field	QuickBooks Desktop Field
1.	Tax Name	Sales Tax Name
2.	Tax Percent	Tax Rate

Example:

The following link details how tax rates work in Projul.

https://help.projul.com/hc/en-us/articles/7059637577879

3.9 Estimates

(Return to table of contents)

Estimate sync is dependent on multiple other data types syncing. If the following data types are not synced, estimate syncing will not work.

1. Categories
2. Costs
3. Customers
4. Projects
5. Taxes

Projul estimate data syncs to QuickBooks Desktop fields as follows.

Sr. No.	Projul Field	QuickBooks Desktop Field
1.	Customer Name	Customer
2.	Project Name	Customer Job
3.	Customer Address	Name / Address
4.	Company Address	---
5.	Company Email	---
6.	Estimate Date	Date
7.	Estimate Expire	---
8.	Estimate Number	Estimate #
9.	Contract Details	Customer Message
10.	Attached Photo/Files	Attached Files
11.	Tax	Tax

• Note: Estimates will always sync as itemized estimates to QuickBooks.

3.10 Invoices

(Return to table of contents)

Invoice sync is dependent on multiple other data types syncing. If the following data types are not synced, invoice syncing will not work.

1. Categories
2. Costs
3. Customers
4. Projects
5. Taxes
6. Estimates

Projul invoice data syncs to QuickBooks Desktop fields as follows.

Sr. No.	Projul Field	QuickBooks Desktop Field
1.	Project Name	Customer
2.	Company Name	---
3.	Invoice Title	Invoice #
4.	Invoice Date	Invoice Date
5.	Due Date	---
6.	Contract Details	Terms
7.	---	Message on Invoice
8.	Attached Photo/Files	Attachment
9.	Tax	Sale Tax Rate

• Note: Invoices will always sync as itemized invoices to QuickBooks.

Example:

The following link details how to itemize an invoice.

https://help.projul.com/hc/en-us/articles/4419712350487-How-do-I-change-my-invoice-to-be-itemized-And-how-do-I-make-it-non-itemized-

3.11 Payments

(Return to table of contents)

Payment sync is dependent on multiple other data types syncing. If the following data types are not synced, payment syncing will not work.

1. Categories
2. Costs
3. Customers
4. Projects
5. Taxes
6. Estimates
7. Invoices

Projul payment data syncs to QuickBooks Desktop fields as follows.

Sr. No.	Projul Field	QuickBooks Desktop Field
1.	Customer Name	Received From
2.	Payment Type	Payment Type
3.	Reference Number	Reference
4.	Payment Amount	Amount
5.	Payment Date	Date

Example:

The following link details how to add a payment to an invoice.

https://help.projul.com/hc/en-us/articles/4429866354711-How-do-I-add-a-payment-to-an-invoice-



Questions? Let's Chat.
support@projul.com
(844) 776-5853
